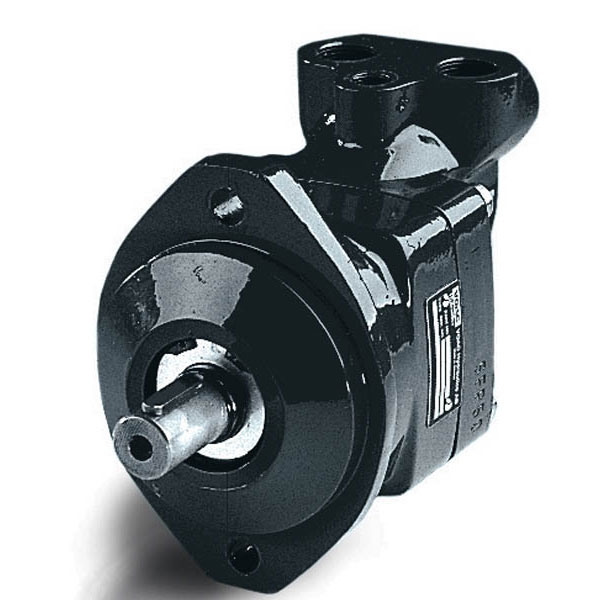

F12-060-MF-IV-K-000-0000-P0

Frame size: -60

Displacement:59.8

Operating pressure

max. intermittent (bar): 480

max. continuous (bar): 420

Motor Operating Speed (rpm)

max. intermittent: 5 800

max. continuous: 5 300

min. continuous: 50

Motor input flow

max. intermittent (l/min): 347

max. continuous (l/min): 317

Torque (theor.) at 100 bar (Nm): 94.9

Main circuit temp. (C)

max. : 80

min. : -40

Mass moment of inertia (x10 to the power -3) (kg m squared):5

Weight (kg) 21
