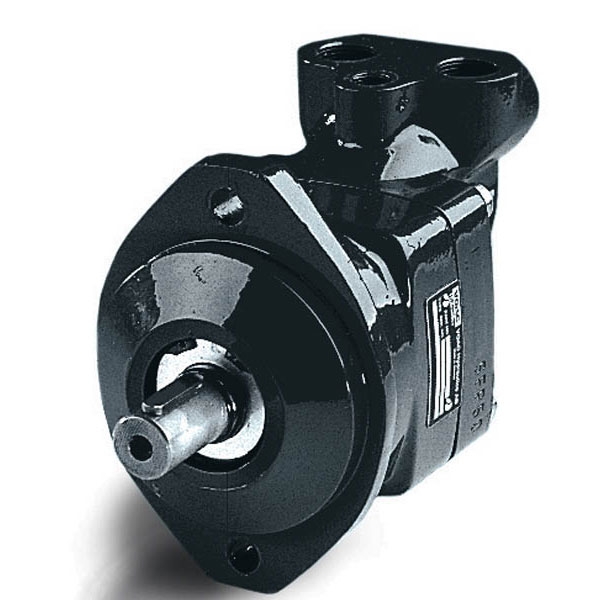

F11-010-MB-CV-K-000-0000-00

Frame size: -10
Displacement: 9.8
Operating pressure
max. intermittent (bar): 420
max. continuous (bar): 350
Motor Operating Speed (rpm)
max. intermittent: 11 200
max. continuous: 10 200
min. continuous: 50
Motor input flow
max. intermittent (l/min): 110
max. continuous (l/min): 100
Torque (theor.) at 100 bar (Nm): 15.6
Main circuit temp. (C)
max. : 80
min. : -40
Mass moment f inertia (x10 to the power -3) (kg m squared): 0.39
Weight (kg) 7.5
